Schindelhauer Antonia 6/9 Electric
The Avant-Gardist
This is a Special Order item. Please email us directly at info@accessimpact.co.uk to enquire and place your order. If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us.
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
The Avant-Gardist
This is a Special Order item. Please email us directly at info@accessimpact.co.uk to enquire and place your order. If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us.
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
The Avant-Gardist
This is a Special Order item. Please email us directly at info@accessimpact.co.uk to enquire and place your order. If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us.
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
Relentlessly progressive
Antonia takes the electrification of the classic Schindelhauer bicycle to a next level. On board, you enjoy full equipment with the best automotive technologies that offer an incomparably harmonious riding experience. Electric assistance in several stages, your muscle power and a high-end gearbox interact perfectly with each other.
Beautiful inside and out
Technology meets timeless design. A lightweight rear-hub motor, the battery placed in the down tube and just one button on the top tube for control – every electric component is perfectly integrated to maintain the characteristic Schindelhauer design. Arthur VI/IX is available with the new, even more powerful Mahle X20 system or the equally reliable previous generation X35.
Powerful rear hub motor
The reliable, particularly lightweight rear hub motor from MAHLE is hardly noticeable and provides a significant thrust of up to 55 Nm.
Battery in the down tube
Depending on your preferred support level, the integrated 250Wh-battery will let you travel between 50 and 80 km. A full charge takes about 3 hours. In case of service, the battery can be removed.
Internal cable routing
From the headset to the fork and the entire frame – all cables and brake cables are routed completely internally. Thanks to the one-piece hydroforming process, the completely hollow fork is particularly stable, but at the same time very light.
Shift like in a sports car
Completely agile and flexible on the road. As for the first time Antonia is equipped with a Pinion gear unit. The royal class among bicycle gears was developed by former Porsche engineers and impresses with its special durability, reliability and precision. Thanks to its positioning, an optimal centre of gravity is ensured.
C-Line with 6 or 9 gears
The casing of the C-Line is made of an ultra-light magnesium alloy and has a resistant powder coating on the outside. For Antonia you can choose between 6 or 9 gears (295%/568% spread).
Precise gear changes
Whether single consecutive gears or entire jumps, you always get direct feedback and thus a secure feeling when shifting. It doesn't matter whether you are standing at the traffic lights or driving - ideal in stop-and-go traffic.
Seamlessly integrated
Consistent with functionality and design. The frame is designed for exceptional requirements, as it is very light but at the same time robust and offers enough space to route all cables and brake cables internally. Thanks to the patented Belt Port, changing the belt drive is child's play
6061 aluminium frame
Stable, robust and yet a true lightweight - the frame is made of high-quality 6061 aluminium. The smoothed weld seams using the "flat-welding" process are a visual highlight.

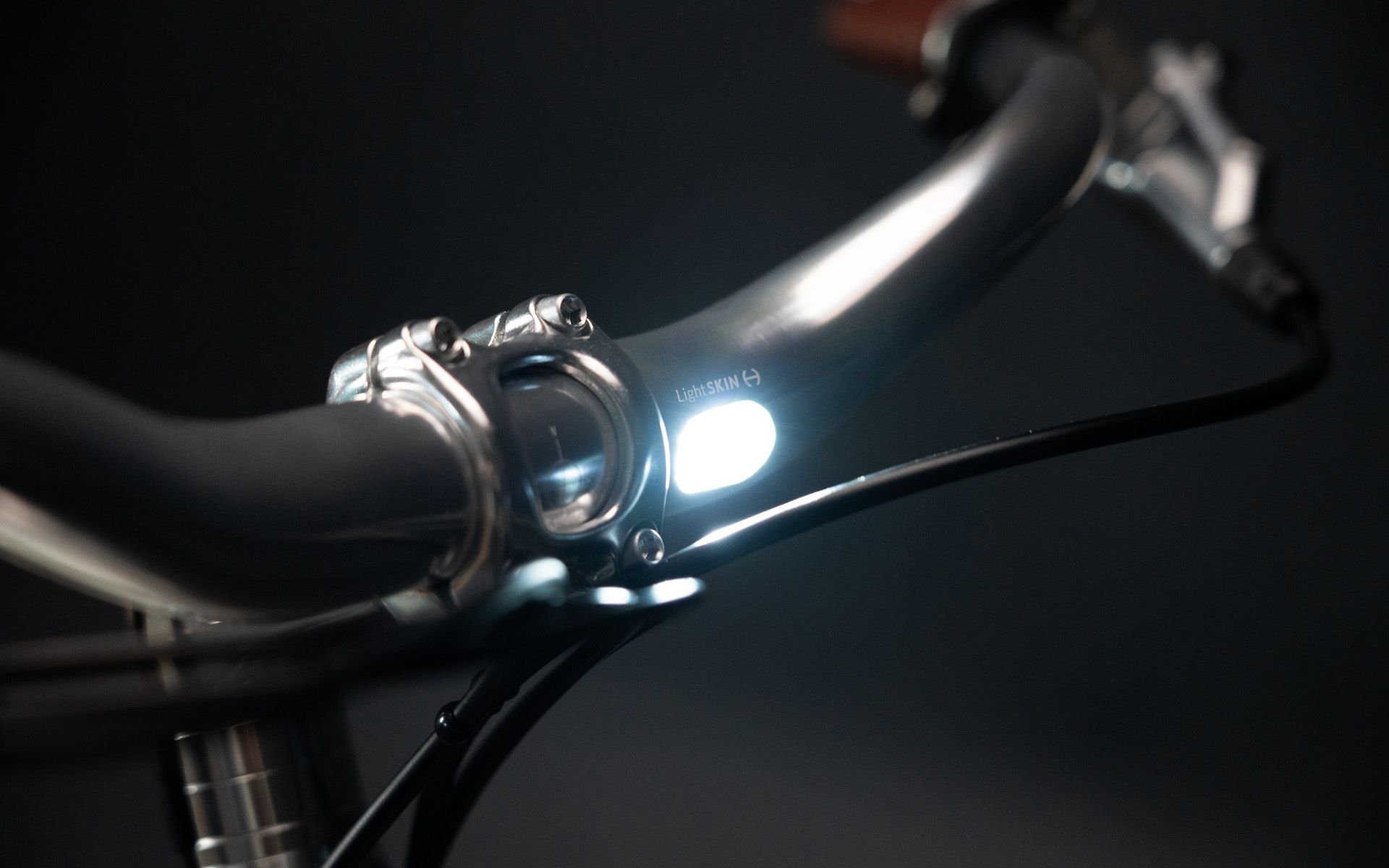

LightSKIN - integrated LED front light
With a brightness of 150 lumens, it is the world's smallest lens that meets the high requirements of the StVZO. Thanks to good heat dissipation, it has a long life span.
LightSKIN - integrated LED rear light
Five LEDs, recessed in the seat post, ensure optimum safety in road traffic from all angles.
Frame Size | Body Height (cm) | Inseam Length (cm) |
---|---|---|
XS (48) | 150-160 | 70-74 |
S (52) | 155-172 | 73-82 |
M (56) | 172-186 | 82-96 |
Frame Size | 48 (XS) | 52 (S) | 56 (M) |
---|---|---|---|
A Size C-T (mm) | 480 | 520 | 560 |
B Top Tube Horiz. (mm) | 600 | 600 | 620 |
C Head Tube (mm) | 165 | 165 | 180 |
D Chain Stay (mm) | 449 | 449 | 449 |
E Head Tube Angle (°) | 72.5 | 72.5 | 72.5 |
F Seat Tube Angle (°) | 73 | 73 | 73 |
G Wheelbase (mm) | 1081 | 1081 | 1101 |
H Standover Height (mm) | 670 | 670 | 760 |
I Reach | 429 | 429 | 445 |
J Stack | 576 | 576 | 590 |
Headset | 1 1/8 - 1,5 | 1 1/8 - 1,5 | 1 1/8 - 1,5 |
Seatpost Size (mm) | 31.6 | 31.6 | 31.6 |
Technical Specification | Details |
---|---|
Grips | Schindelhauer – ergo leather grips |
Fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
Display | Mahle X20 - Head Unit in top tube, with Bluetooth und ANT+ |
Headset | Acros - ICR 1.5'' |
Seatpost | LightSKIN – seat post integrated LED-rear-light |
Saddle | Brooks – B17 S Lady (chrome rails) |
Brakes | Shimano - Alfine S7000 disc brake (hydraulic), 160mm |
Stem | Satori – Stealth, aluminium |
Mudguards | Curana - Clite |
Handlebar | LightSKIN CITY – handlebar integrated LED-front-light |
Lighting | LightSKIN – handlebar integrated LED-front-light, seat post integrated LED-rear-light |
Frame | Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated motor connection, integrated seat post clamp, smooth welded, internal cable routing |
Battery | Mahle X20 – Intube Akku 250 Wh capacity |
Gear Shift | Pinion C-Line gear box 9-speed (XR) |
Crank Set | Pinion |
Pannier Rack | Rear pannier rack mounting possible |
Bottom Bracket | Pinion |
Motor | Mahle X20 – Hub Drive, 250 W Power, 55 Nm, 12 mm ThroughAxle |
Additional Features | Side stand mounting possible Mounting of bottle cage or lock possible |
Wheels | Schindelhauer – straight-pull front hub disc, Mahle - X20 motor, Kinlin - TL23R, Sapim – Race spokes, 3-cross and 2-cross laced |
Weight | 15.9 kg (size M) |
Pedals | Schindelhauer – Urban Pedal, aluminium, CNC machined |
Tyres | Continental – GP Urban Classic 35-622 |
Power Transmission | Gates Carbon Drive CDX, front 39T, rear 28T, belt 115T |
