Classic electrified
Visually, Arthur is almost indistinguishable from a classic Schindelhauer bike and at just 13.4 kg, it is an absolute lightweight. The natural feeling of cycling and the electric drive harmonise perfectly, as if you had a tailwind with you every day. Wherever your destinations take you, you will reach them with a completely new sense of serenity.
Conspicuously inconspicuous
Electric inside, bike outside. A small rear-hub motor, the battery placed in the down tube and just one button on the top tube for control – every electric component is perfectly integrated to maintain the characteristic Schindelhauer design. Naturally, you can also control Arthur via the app for iOS and Android in addition to many other smart features.
Compact rear hub motor
The reliable, particularly lightweight rear hub motor from MAHLE is hardly noticeable and provides a significant thrust of up to 40 Nm.
Battery in the down tube
Depending on your preferred support level, the integrated 250Wh-battery will let you travel between 50 and 80 km. A full charge takes about 3 hours. In case of service, the battery can be removed.
Seamlessly integrated
Consistent with functionality and design. The frame is designed for exceptional requirements, as it is very light but at the same time robust and offers enough space to route all cables and brake cables internally. Thanks to the patented Belt Port, changing the belt drive is child's play.
6061 aluminium frame
Stable, robust and yet a true lightweight - the frame is made of high-quality 6061 aluminium. The smoothed weld seams using the "flat-welding" process are a visual highlight.
Designed for Gates Carbon Drive
The patented Belt Port, an almost invisible opening at the dropout, makes it possible to change the belt drive. The slider belt tensioning system is used for optimal adjustment of the belt tension.
Internal cable routing
New standards: Thanks to the one-piece hydroforming process, the completely hollow fork is particularly stable, but at the same time very light. Cables and brake cables are thus completely routed internally.
See and be seen
Always an illuminating appearance. The latest LED technology from LightSKIN is not only perfectly integrated into the handlebar and seatpost, but also complies with German StVZO regulations. It is always available at the touch of a button, as it is powered directly from the battery. During the day, you won't even notice that it's with you.

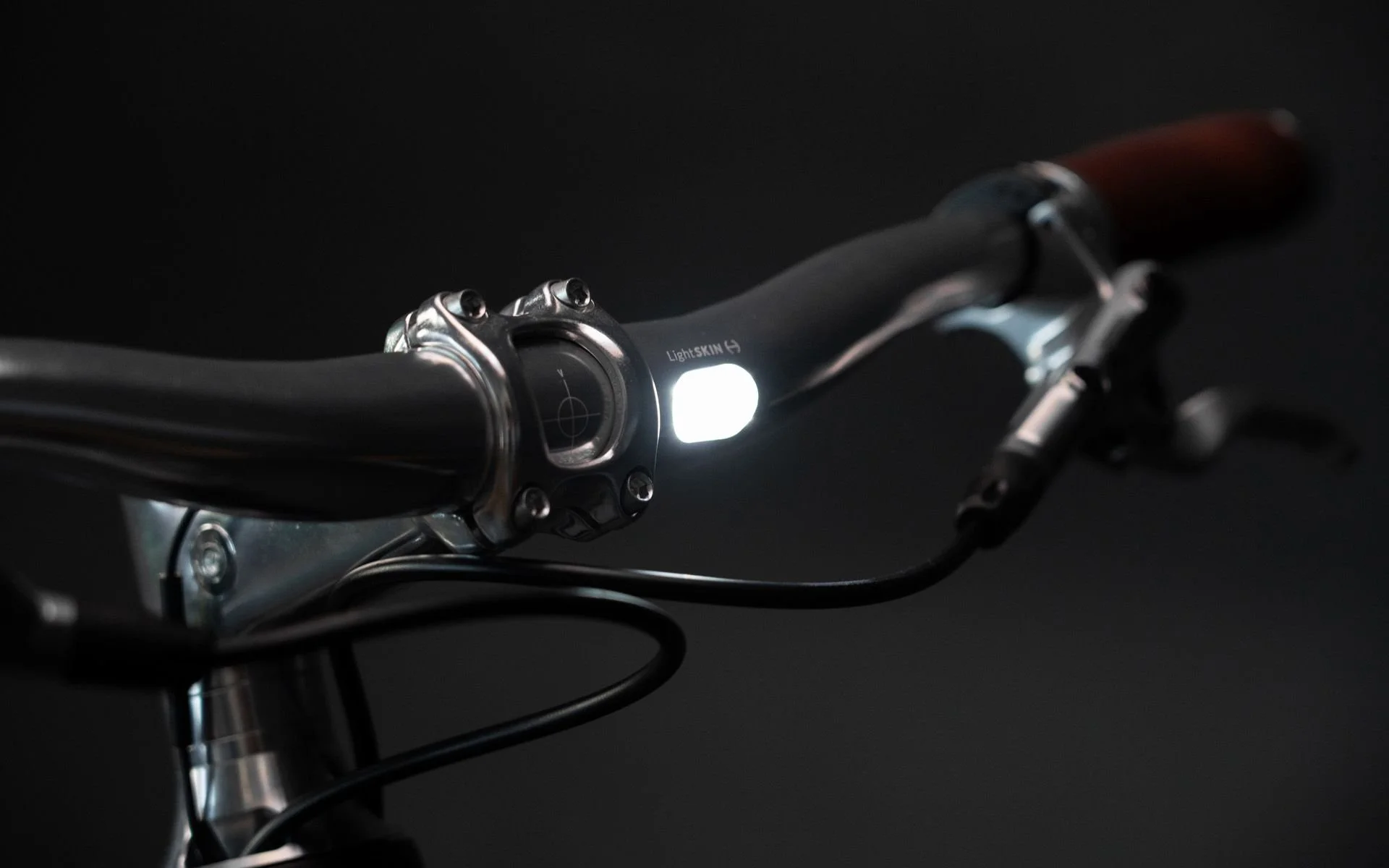

LightSKIN - integrated LED front light
With a brightness of 150 lumens, it is the world's smallest lens that meets the high requirements of the StVZO. Thanks to good heat dissipation, it has a long life span.
LightSKIN - integrated LED rear light
Five LEDs, recessed in the seat post, ensure optimum safety in road traffic from all angles.
| Frame Size | Body Height (cm) | Inseam Length (cm) |
|---|---|---|
| S (53) | 167-175 | 80-84 |
| M (56) | 175-183 | 84-88 |
| L (59) | 183-191 | 88-92 |
| XL (62) | 191-200 | 92-100 |
| Frame Size | 53 (S) | 56 (M) | 59 (L) | 62 (XL) |
|---|---|---|---|---|
| A Size C-T (mm) | 530 | 560 | 590 | 620 |
| B Top Tube Horiz. (mm) | 560 | 580 | 600 | 610 |
| C Head Tube (mm) | 150 | 165 | 180 | 200 |
| D Chain Stay (mm) | 418 | 418 | 418 | 418 |
| E Head Tube Angle (°) | 72.5 | 72.5 | 72.5 | 72.5 |
| F Seat Tube Angle (°) | 73 | 73 | 73 | 73 |
| G Wheelbase (mm) | 1018 | 1037 | 1058 | 1068 |
| H Standover Height (mm) | 803 | 825 | 846 | 870 |
| I Reach | 401 | 415 | 431 | 435 |
| J Stack | 557 | 571 | 586 | 605 |
| Headset | 1 1/8 - 1.5 | 1 1/8 - 1.5 | 1 1/8 - 1.5 | 1 1/8 - 1.5 |
| Seatpost Size (mm) | 31.6 | 31.6 | 31.6 | 31.6 |
| Technical Specification | Details |
|---|---|
| Grips | Schindelhauer – ergo leather grips |
| Fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
| Display | Mahle X20 - Head Unit in top tube, with Bluetooth und ANT+ |
| Headset | Acros - ICR 1,5'' |
| Seatpost | LightSKIN – seat post integrated LED-rear-light |
| Saddle | Brooks – Swift |
| Brakes | Shimano - Alfine S7000 disc brake (hydraulic), 160mm |
| Stem | Satori – Stealth, aluminium |
| Mudguards | Mudguard mounting possible |
| Handlebar | LightSKIN Rider – handlebar integrated LED-front-light |
| Lighting | LightSKIN – handlebar integrated LED-front-light, seat post integrated LED-rear-light |
| Frame | Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated motor connection, integrated seat post clamp, smooth welded |
| Battery | Mahle X20 – Intube Akku 250 Wh capacity |
| Gear Shift | -- |
| Crank Set | Shimano – Alfine Hollowtech II |
| Pannier Rack | Rear pannier rack mounting possible |
| Bottom Bracket | Press-Fit bottom bracket |
| Motor | Mahle X20 – Hub Drive, 250 W Power, 55 Nm, 12 mm ThroughAxle |
| Additional Features | Side stand mounting possible Mounting of bottle cage or lock possible |
| Wheels | Schindelhauer – straight-pull front hub disc, Mahle - X20 motor, Kinlin - TL23R, Sapim – Race spokes, 3-cross and 2-cross laced |
| Weight | 13.4 kg (size M) |
| Pedals | Schindelhauer – Urban Pedal, aluminium, CNC machined |
| Tyres | Continental – GP Urban Classic 35-622 |
| Power Transmission | Gates Carbon Drive – CDX, front 60T, rear 22T, belt 118T |
