Schindelhauer Heinrich 1.0 Single Speed | Bosch Performance Line
The Free Thinker
This is a Special Order item. Please email us directly at info@accessimpact.co.uk to enquire and place your order. If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us.
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
The Free Thinker
This is a Special Order item. Please email us directly at info@accessimpact.co.uk to enquire and place your order. If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us.
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
The Free Thinker
This is a Special Order item. Please email us directly at info@accessimpact.co.uk to enquire and place your order. If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us.
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
Single speed reinterpreted
The third-generation Bosch drive ensures a natural riding experience. As Active or Performance Line with up to 65 Nm torque, you can experience single-speed in a completely new way, because accelerating has never felt so easy. At the same time, the special geometry of the frame guarantees a dynamic cornering position and makes Heinrich as agile as a typical Schindelhauer bike despite the mid-mounted motor. A perfectly integrated lighting system is also on board.
Reliable performance
The very quiet and reliable Bosch motor does not need a gearbox, so you can ride in a relaxed manner even without assistance or over 25 km/h. Behind the sleek exterior is a technically complex in-house development that encloses the mid-motor and battery as compactly and elegantly as possible - without sacrificing functionality or stability.
Powerful mid-motor
Depending on the desired support, there are two variants to choose from: Bosch Active Line Plus (max. 50 Nm) or Performance Line (max. 65 Nm).

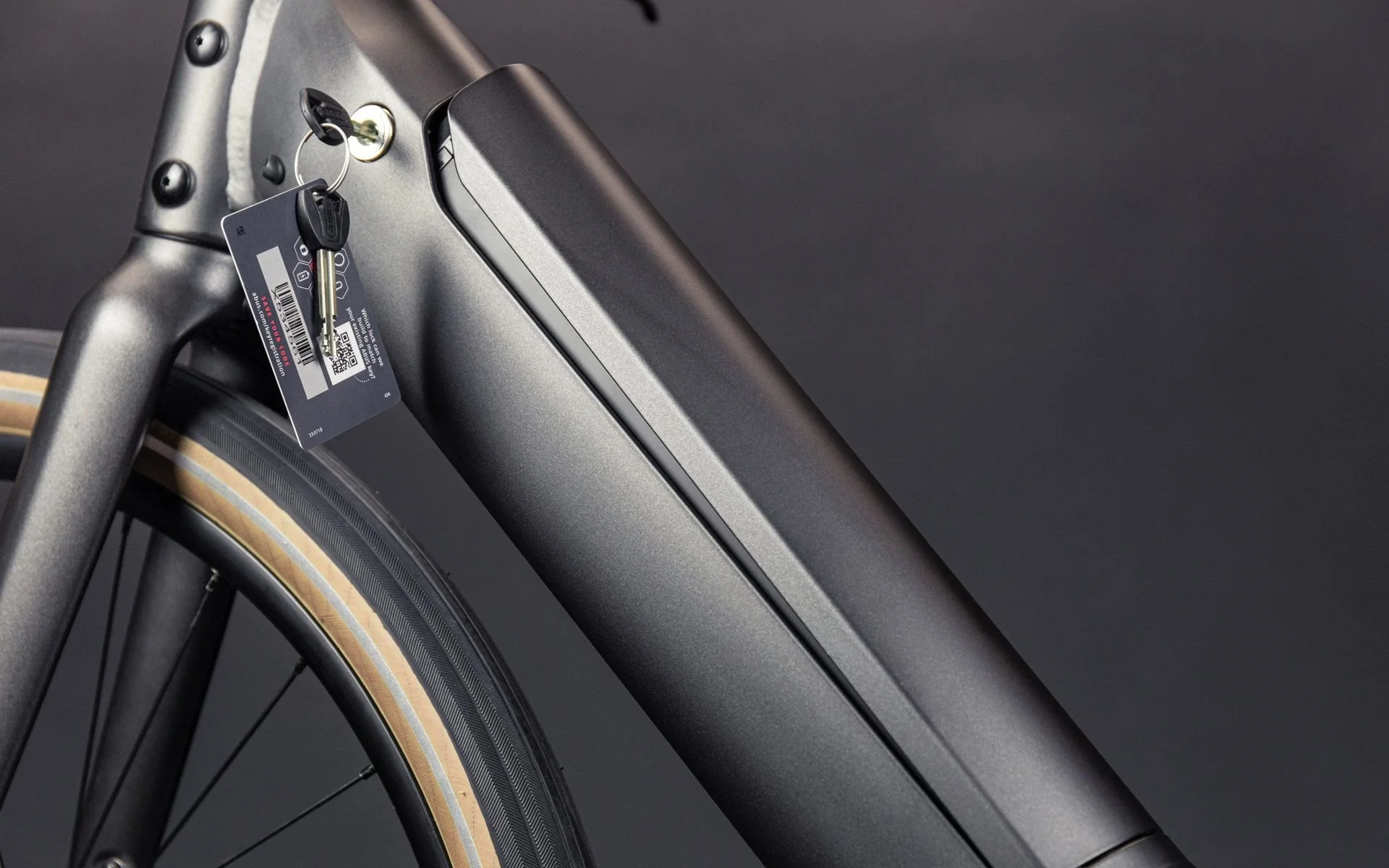

Removable battery
The PowerTube 500 battery offers sufficient range for daily journeys to work, to do the shopping or into the countryside. The battery is removable and can be fully charged in 4.5 hours.

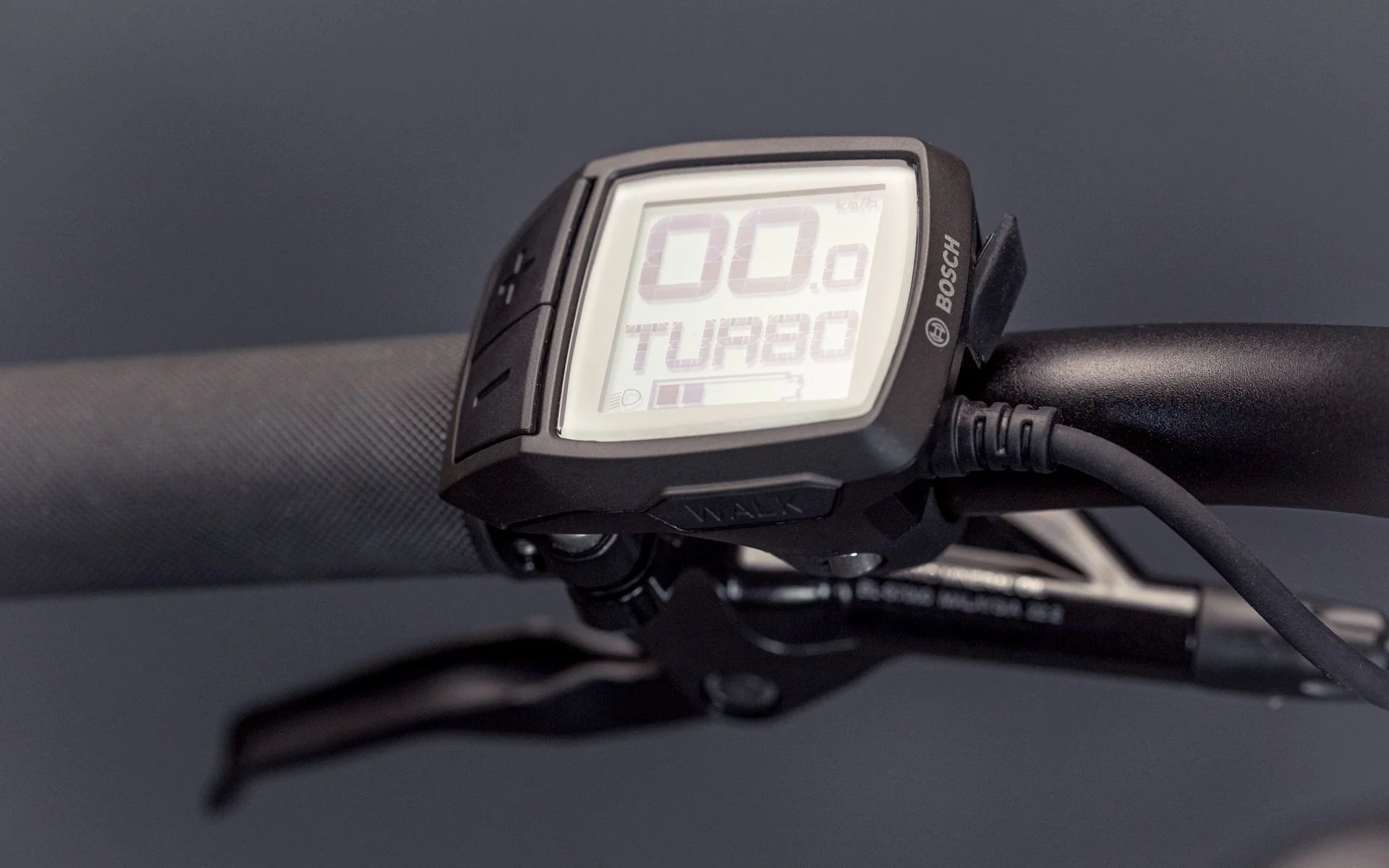

Control via onboard display
The level of assistance and speed indication is selected via the Bosch Purion display, which can be used to select the four motor levels from Eco to Turbo.
Gates Carbon Drive
Since day one, Schindelhauer has been using the superior belt drive from Gates, which consists of embedded carbon fibres. All bikes are specially designed for the belt drive in order to take advantage of all the benefits.
Zero maintenance
Oiling, greasing and rusting are a thing of the past.
Highly efficient
With a higher wattage, the efficiency is higher compared to the chain.
Long life span
The Gates Carbon Drive lasts about 3-4 times longer than a chain.
Stay clean
Due to the lack of oil, it keeps your trousers away from dirt.
Super quiet
No chain - No more chain running noises.
Lightweight
The Gates Carbon Drive weighs 20% less than a classic chain.
Brilliant duo
Optimum visibility and StVZO-compliant safety are also ensured in the dark. Discreetly integrated into the seat post, Heinrich is equipped with LightSKIN. Trusted Supernova technology is used as the headlight. Power is supplied by the e-bike battery.

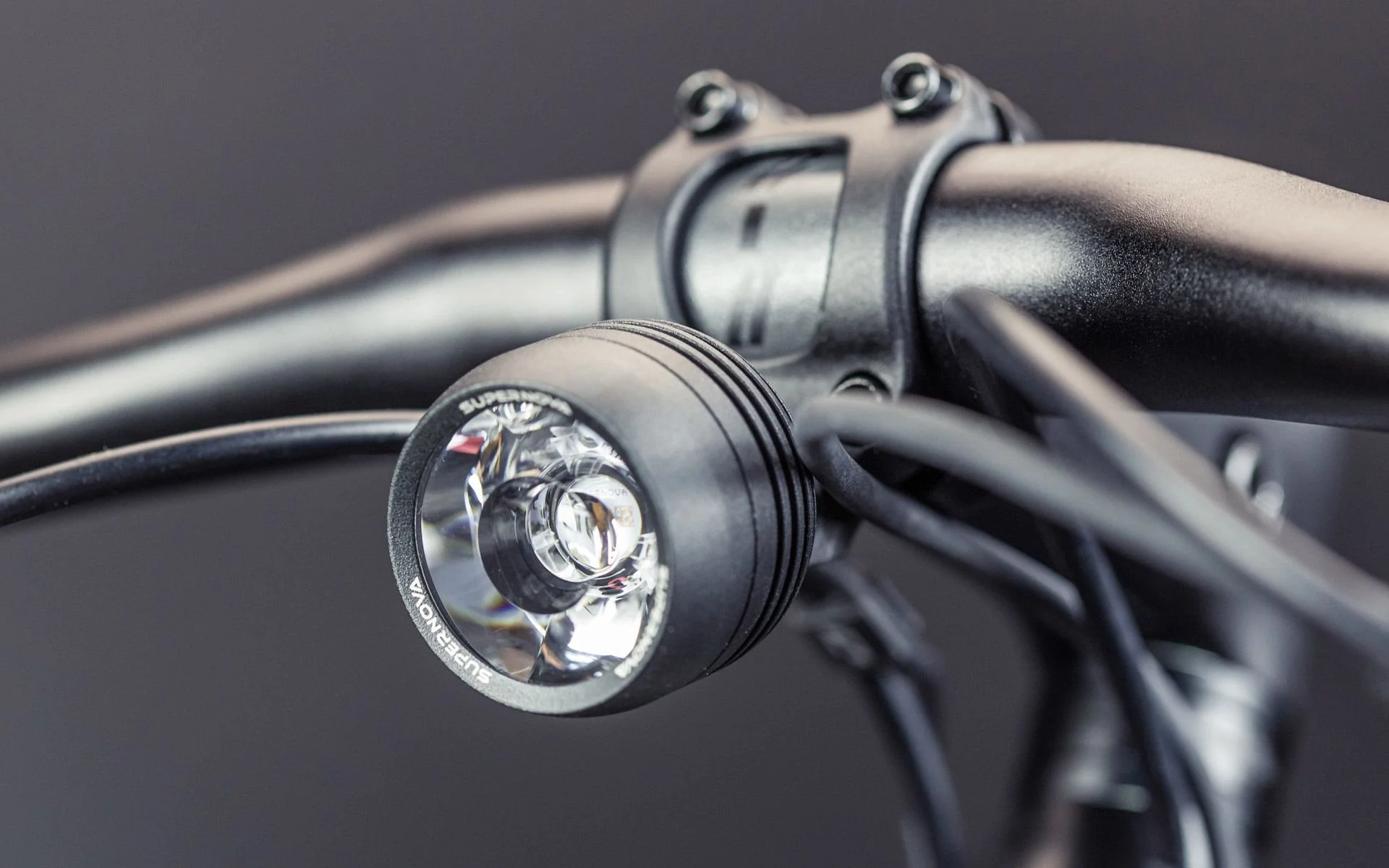

Supernova - Mini 2 Headlight
The Mini 2 front light has it all: thanks to the new Terraflux 3 lens, the brightness has been increased to more than 15%. In addition to the optimized reflector it creates an ideal road illumination.
LightSKIN - integrated LED rear light
Five LEDs, recessed in the seat post, ensure optimum safety in road traffic from all angles.
| Frame Size | Body Height (cm) | Inseam Length (cm) |
|---|---|---|
| S (45) | 160-179 | 79-84 |
| M (49) | 165-185 | 84-89 |
| L (53) | 172-193 | 89-98 |
| Technical Specification | 45 (S) | 49 (M) | 53 (L) |
|---|---|---|---|
| A Size C-T (mm) | 450 | 490 | 530 |
| B Top Tube Horiz. (mm) | 590 | 630 | 644 |
| C Head Tube (mm) | 200 | 200 | 220 |
| D Chain Stay (mm) | 450 | 450 | 450 |
| E Head Tube Angle (°) | 72.5 | 72.5 | 72.5 |
| F Seat Tube Angle (°) | 73 | 73 | 73 |
| G Wheelbase (mm) | 1067 | 1107 | 1122 |
| H Standover Height (mm) | 784 | 807 | 840 |
| I Reach | 404 | 444 | 452 |
| J Stack | 609 | 609 | 628 |
| Headset | 1 1/8 - 1.5 | 1 1/8 - 1.5 | 1 1/8 - 1.5 |
| Seatpost Size (mm) | 31.6 | 31.6 | 31.6 |
| Technical Specification | Details |
|---|---|
| Grips | Schindelhauer (bolt-on) |
| Fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
| Display | Bosch - Purion |
| Headset | Tange Seiki integrated, tapered 1 1/8-1.5 |
| Max. Total Weight | 155 kg (bike + rider + luggage) |
| Saddle | FABRIC - Scoop Shallow Sport |
| Brakes | Formula - CURA disc brakes (hydraulic), 160 mm |
| Stem | Satori - Stealth, aluminium |
| Mudguards | Mudguard mounting possible |
| Handlebar | Satori - Noirette aluminium |
| Lighting | Supernova - Mini 2 front light, seatpost with integrated LED-rear-light |
| Frame | Aluminium (AL6061-T6), triple butted tubing, forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded, 5-year warranty |
| Battery | Bosch - Powertube 500, intube battery, energy: 500 Wh |
| Gear Shift | - |
| Crank Set | Miranda - Delta |
| Pannier Rack | Front rack mounting possible |
| Bottom Bracket | - |
| Motor | Bosch - Active Line Plus, power: 250 W, torque: 50 Nm, max. support up to 25 km/h Bosch - Performance Line (Cruise), power: 250 W, torque: 65 Nm, max. support up to 25 km/h |
| Additional Features | Hebie - side stand 663 FIX18 lock holster mounting possible, frame lock mounting possible, attaching a child seat onto the seat tube is possible but will cover up the rear light (LightSKIN LED seat post) |
| Wheels | Schindelhauer - high flange front hub disc, Schindelhauer - rear hub disc, Alexrims - EXR25 rims with eyelets, Sapim - Strong spokes, 3-cross laced |
| Weight | 19.7 kg (size M) |
| Pedals | Schindelhauer - Urban Pedal, aluminium, CNC machined |
| Seat Post | LightSKIN - seat post integrated LED-rear-light |
| Tyres | WTB - Horizon 47-584, with reflex stripes |
| Power Transmission | Gates Carbon Drive - CDX, front 55T, rear 20T, belt 120T |
