THE CITY ALL-ROUNDER
Practical, functional and yet reduced in appearance - Gustav is an all-rounder in urban traffic and offers comfort as well as a functional equipment package for everyday commuting. In this limited edition, Gustav appears with polished silver components, leather applications and LightSKIN U2 headlights. Each bike is individually numbered by engraving.
Award-winning Design

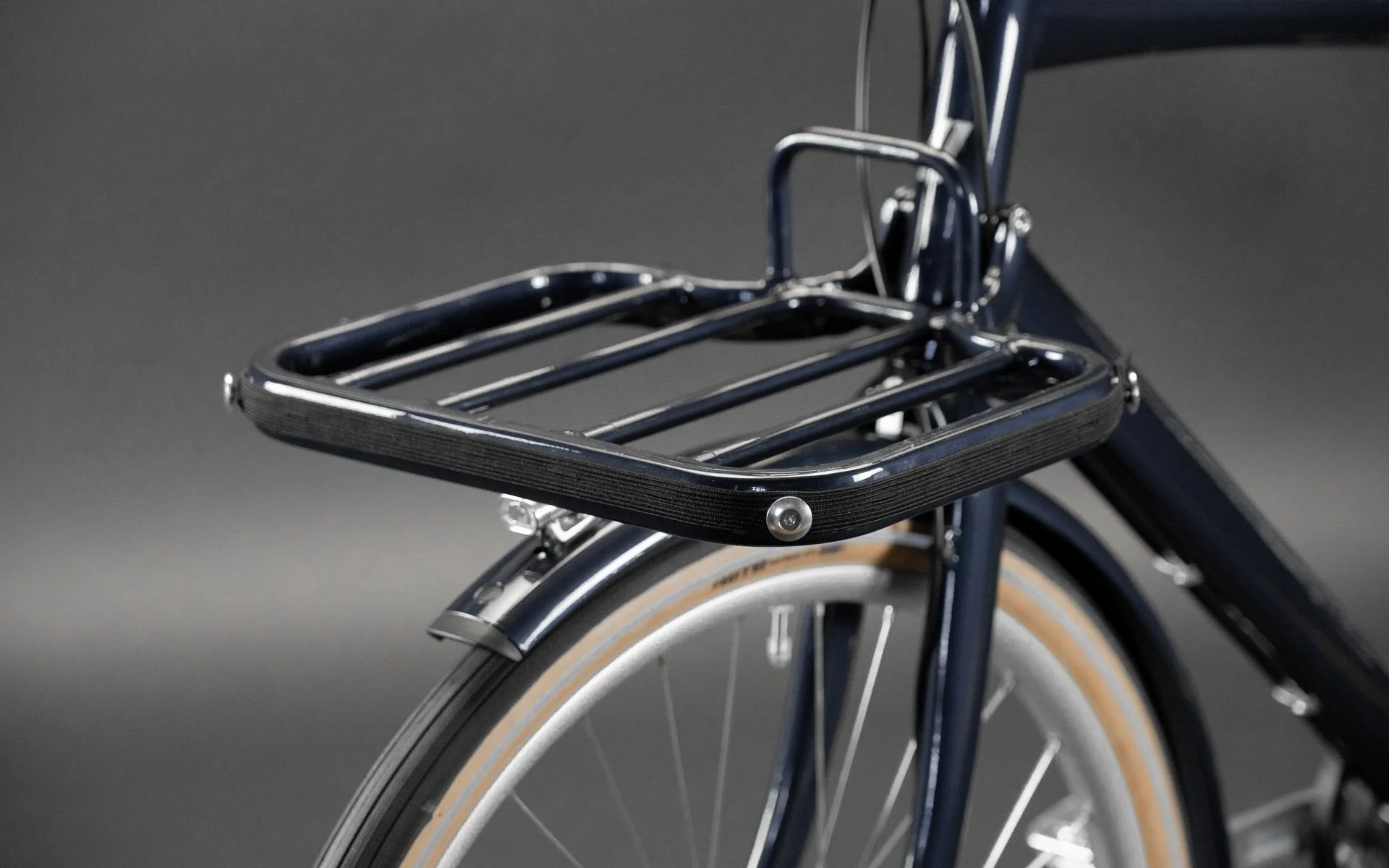

Awarded by renowned design experts and decision-makers from the bicycle industry, Gustav stands for the well thought-out concept of the functional, aesthetically sophisticated everyday bicycle. In the course of the relaxed frame geometry and seating position as well as comfortable tyres, short distances in the city can be managed just as comfortably as extended tours. Another highlight is the frame-mounted front rack with VarioStrap system, which keeps the load securely in place.
Comfortable. Relaxed. Low maintenance.
Enough clearance for large-volume tyres, sufficient loading height for the front carrier and a relaxed riding position were the goals when developing the geometry for Gustav. The low bottom bracket and long head tube achieved just that. Even cobblestone paths become a new favourite shortcut with this riding comfort.
Comfortable on any terrain.
Whether extended tours with climbs or speedy tailwind passages, the Shimano Nexus 8-speed transmission offers enough leeway with a spread of 307%. Shift and brake levers are optimally integrated in the tidy cockpit and easy to reach. The high-quality rubber grips ensure optimum grip even on uneven terrain.
See and be seen.

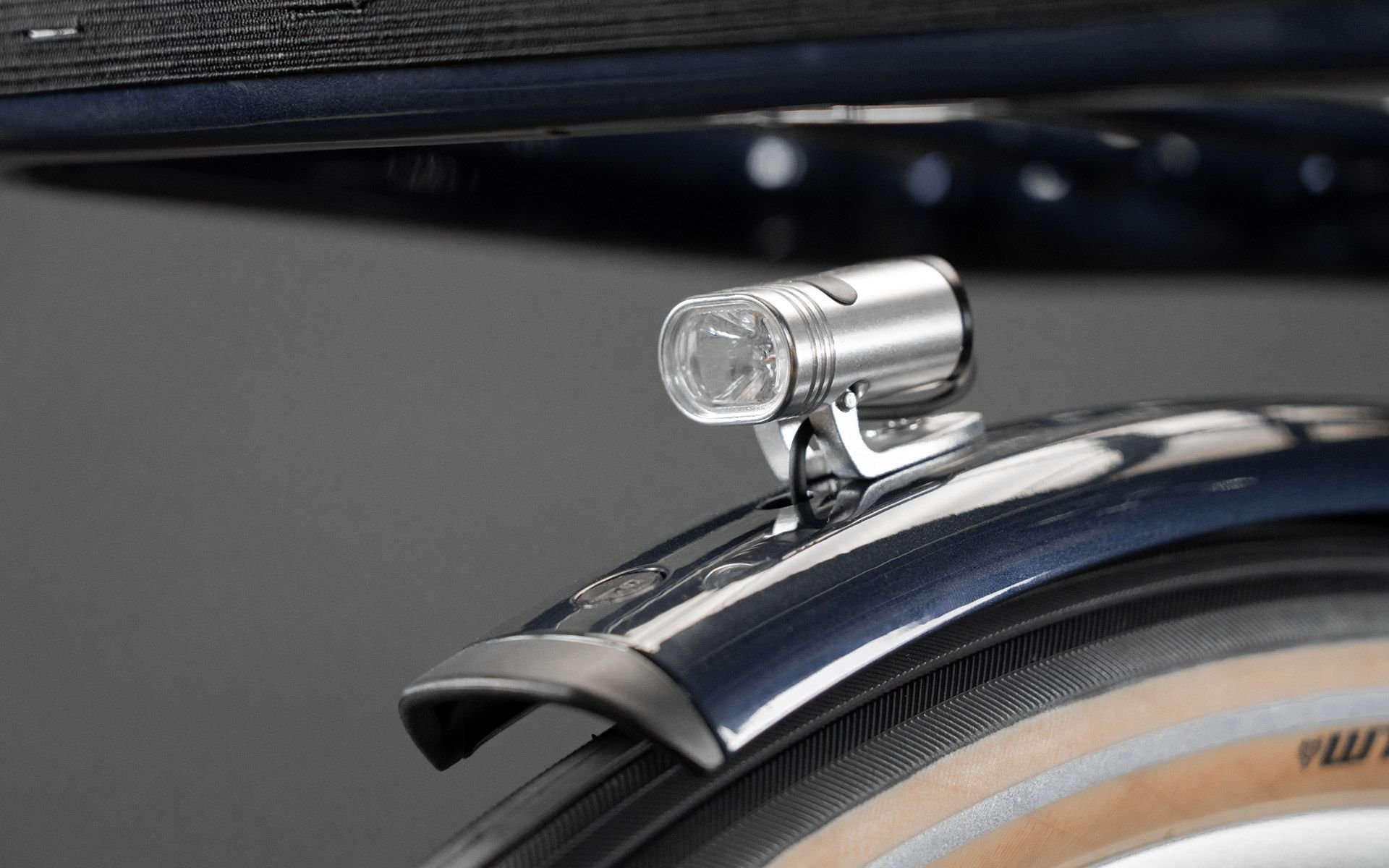

The Busch und Müller headlight ensures good visibility at night, while the Curana rear light is inconspicuously integrated into the rear aluminium mudguard. Thanks to the hub dynamo, you don't need to worry about the power supply - a standlight function is also on board.
KEY FEATURES
BRAKES: Shimano - Alfine S7000 disc brake (hydraulic), 160mm
LIGHTING: LightSKIN U2 front and ILU jr. Rear

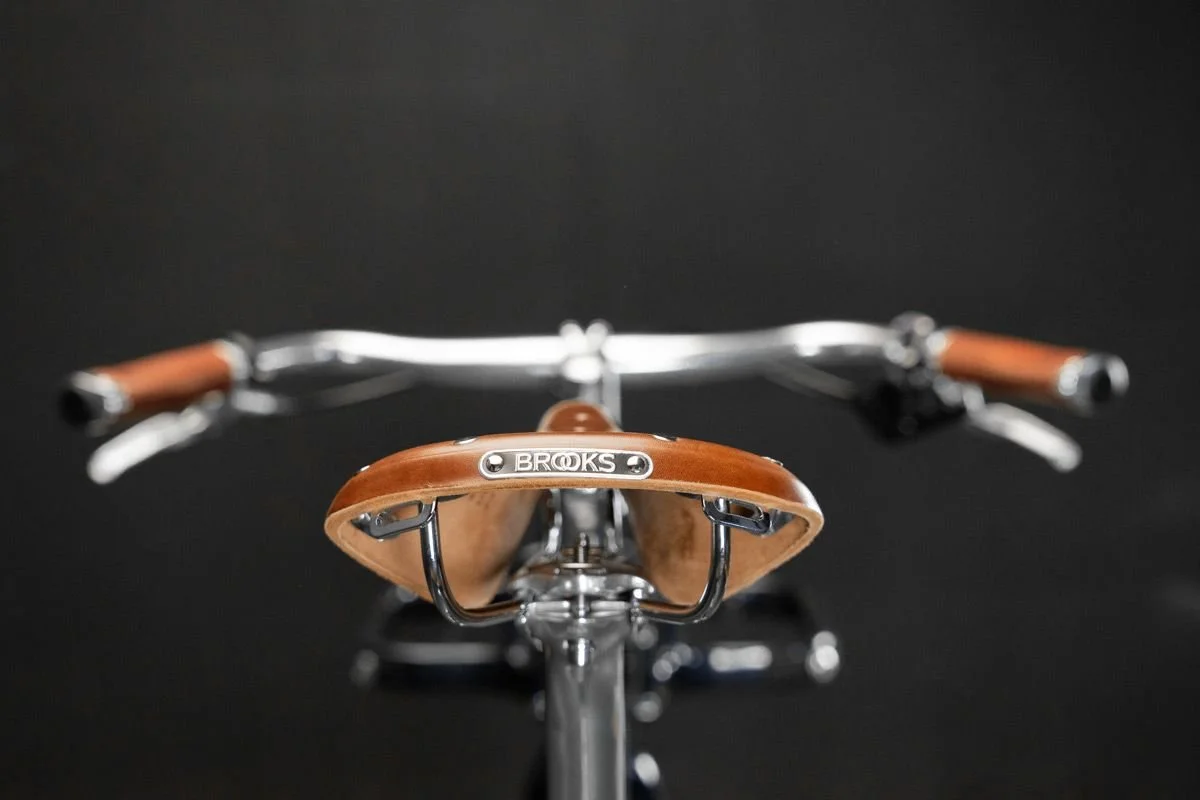

SADDLE: Brooks – B17
FRAME: Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, points for frame mounted front rack, smooth welded
GEAR SHIFT: Shimano - Alfine 8-speed
CARGO: Frame-mounted front rack
POWER TRANSMISSION: Gates Carbon Drive - CDN, front 46T, rear 24T, belt 115T
WHEELS: Shutter Presision – PL-8 hub dynamo, SRAM – Shimano Alfine 8-speed, RYDE – RIVAL 26 27,5“ rims, SAPIM spokes, 3-cross and 2-cross laced
TYRES: WTB - Horizon 47 - 584, with reflex stripes
| Frame Size | Body Height (cm) | Inseam Length (cm) |
|---|---|---|
| S (45) | 168-177 | 77-82 |
| M (50) | 177-186 | 83-88 |
| L (55) | 186-200 | 89-96 |
| Frame Size | 45 (S) | 50 (M) | 55 (L) |
|---|---|---|---|
| A Size C-T (mm) | 450 | 500 | 550 |
| B Top Tube Horiz. (mm) | 590 | 630 | 644 |
| C Head Tube (mm) | 190 | 200 | 230 |
| D Chain Stay (mm) | 438 | 438 | 438 |
| E Head Tube Angle (°) | 72.5 | 72.5 | 72.5 |
| F Seat Tube Angle (°) | 73 | 73 | 73 |
| G Wheelbase (mm) | 1063 | 1104 | 1118 |
| H Standover Height (mm) | 808 | 836 | 873 |
| I Reach | 409 | 447 | 453 |
| J Stack | 615 | 624 | 653 |
| Headset | 1 1/8 | 1 1/8 | 1 1/8 |
| Seatpost Size (mm) | 30.9 | 30.9 | 30.9 |
| Technical Specification | Details |
|---|---|
| GRIPS | Schindelhauer – ergo leather grips |
| FORK | curved aluminium fork for disc brake mount |
| HEADSET | Tange Seiki - integrated, 1 1/8 |
| MAX . TOTAL WEIGHT | 130 kg (bike + rider + luggage) |
| SEATPOST | Schindelhauer |
| SADDLE | Brooks – B17 |
| BRAKES | Shimano - Alfine S7000 disc brake (hydraulic), 160mm |
| STEM | Schindelhauer |
| MUDGUARDS | Curana – Apollo (extrusion profile mudguards) |
| HANDLEBAR | Schindelhauer - Jane, Aluminium |
| LIGHTING | LightSKIN U2 front and ILU jr. rear |
| FRAME | Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, points for frame mounted front rack, smooth welded |
| GEAR SHIFT | Shimano - Alfine 8-speed |
| CRANK SET | Shimano – Alfine Hollowtech II |
| PANNIER RACK | Schindelhauer - aluminium, frame mounted, with VarioStraps |
| BOTTOM BRACKET | BSA, Shimano – Alfine Hollowtech II |
| ADDITIONAL FEATURES | Pletscher Twin stand Mounting of bottle cage or lock onto the frame is possible Attaching a child seat onto the seat tube is possible Installing a bicycle trailer onto the rear axle is possible but will require a hub hitch adapter. Please consult the trailer manufacturer or dealer for further information |
| WHEELS | Shutter Presision – PL-8 hub dynamo, SRAM – Shimano Alfine 8-speed, RYDE – RIVAL 26 27,5“ rims, SAPIM spokes, 3-cross and 2-cross laced |
| WEIGHT | 13.0 kg |
| PEDALS | Schindelhauer – Urban Pedal, aluminium, CNC machined |
| TYRES | WTB - Horizon 47 - 584, with reflex stripes |
| POWER TRANSMISSION | Gates Carbon Drive – CDX, front 46T, rear 24T, belt 115T |
