Schindelhauer Ludwig
THE CLASSIC SPORTSMAN
If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us at info@accessimpact.co.uk
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
THE CLASSIC SPORTSMAN
If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us at info@accessimpact.co.uk
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
THE CLASSIC SPORTSMAN
If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us at info@accessimpact.co.uk
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.

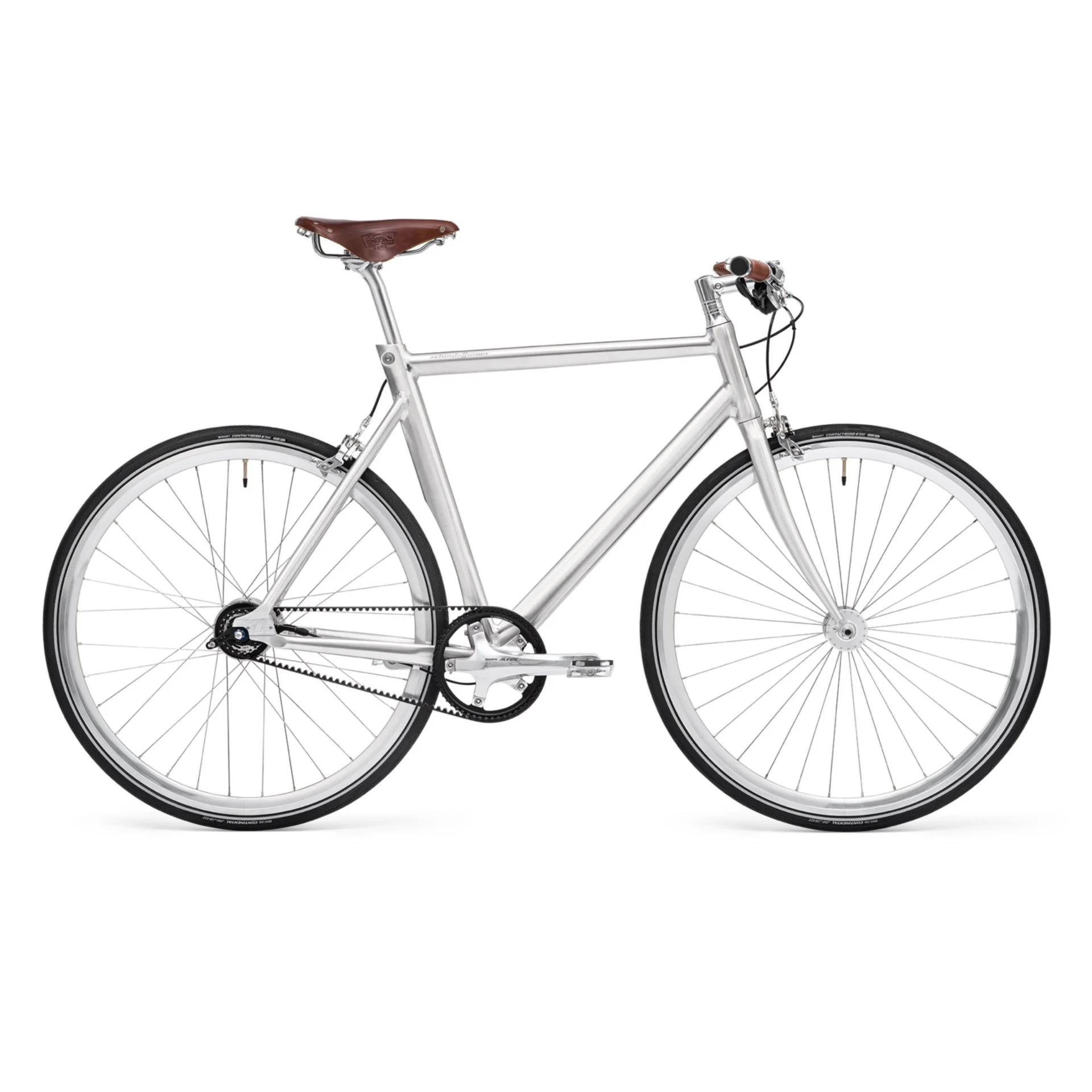

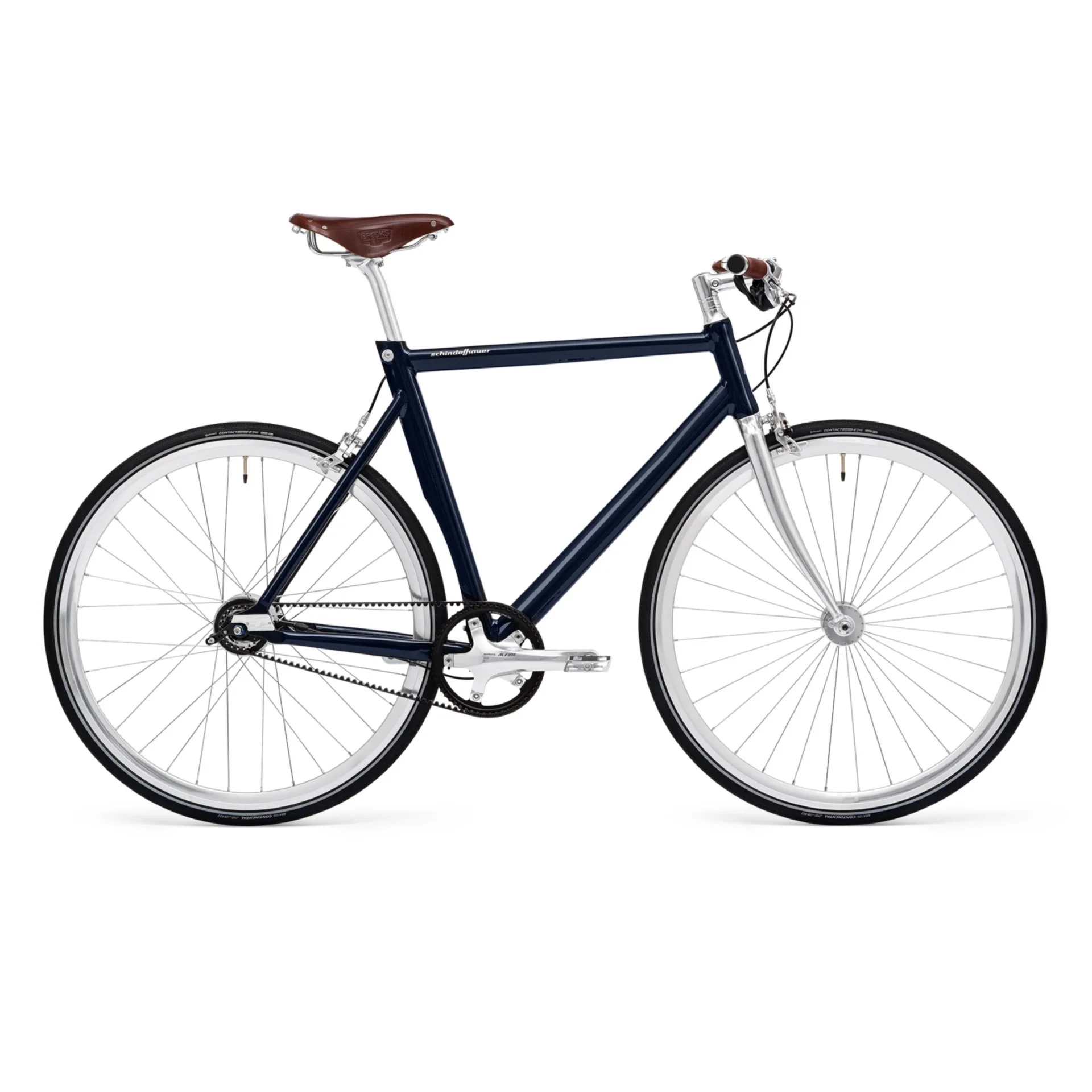

THE CLASSIC SPORTSMAN
Technically innovative and versatile - Ludwig is the multi-faceted classic for everyday use and weekend touring. Equipped with Shimano transmission, Ludwig is perfectly balanced between flexibility and performance.
Sporting flexibility
Ludwig follows in the tracks of Siegfried's sportiness while at the same time setting new priorities in terms of flexibility for everyday use. The Shimano Alfine transmission contributes to this, as does a more comfortable frame geometry thanks to a longer wheelbase, higher head tube and lower bottom bracket. Lights and mudguards can be easily retrofitted if necessary - selected components integrate perfectly to maintain the reduced design language and typical Schindelhauer character.

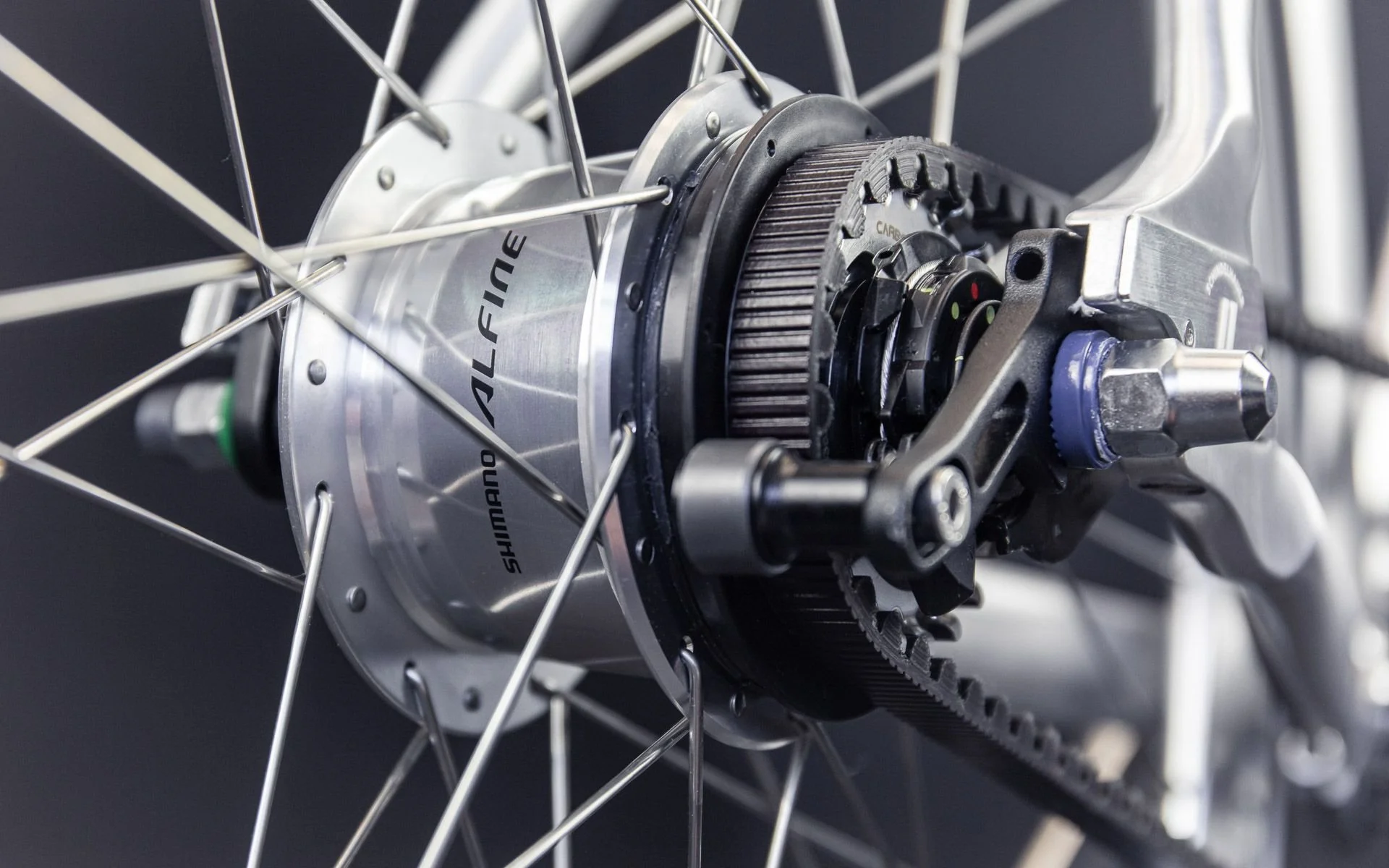

A special drive
Instead of a conventional chain, the maintenance-free Gates Carbon Drive CDX CenterTrack belt drive ensures a light, silent and fast ride. For extended tours with climbs or fast tailwind passages, the Shimano Alfine 8- or 11-speed transmission is a perfect match.

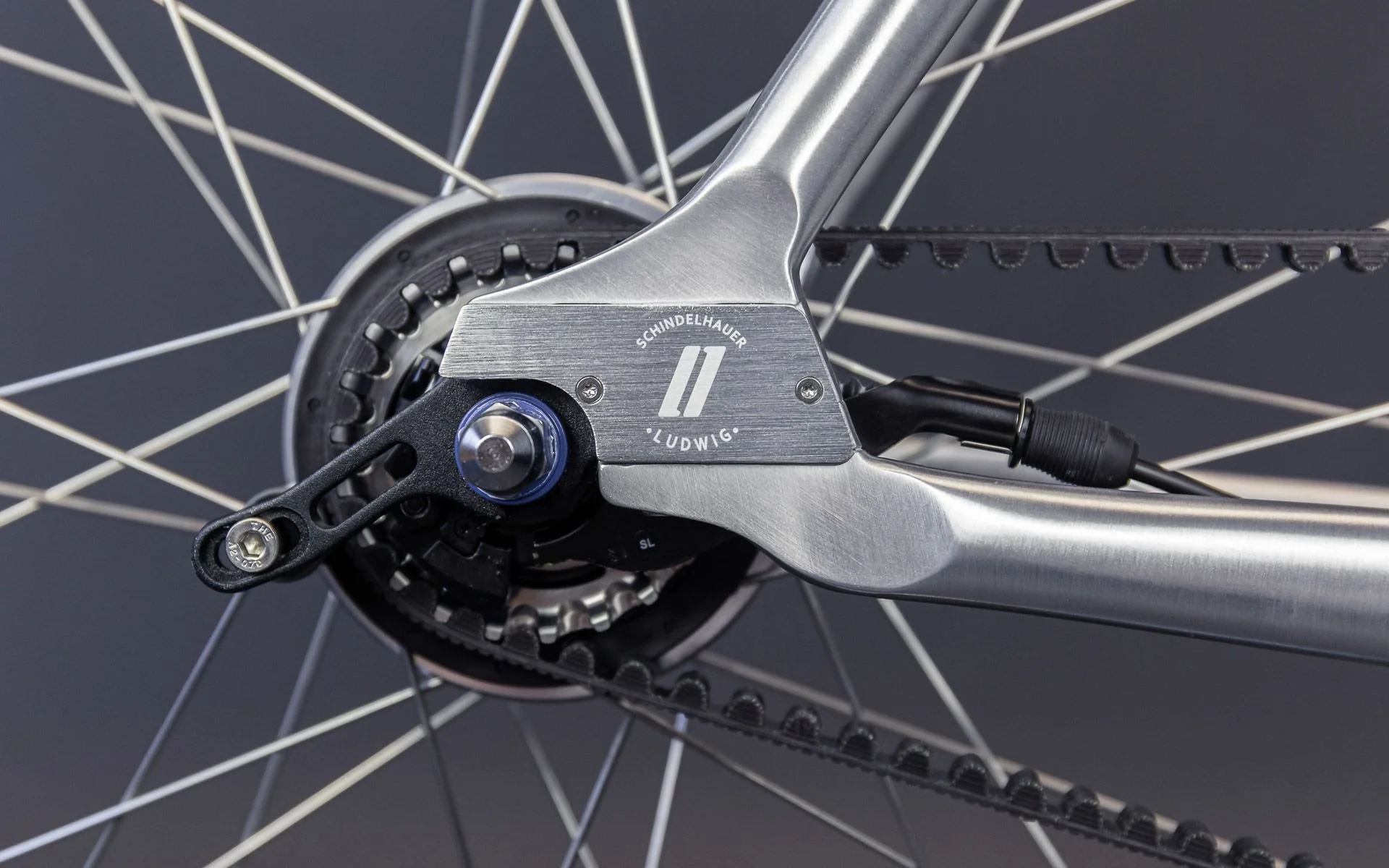

Seamlessly integrated technologies.
Ludwig is designed from the ground up for the Gates Carbon Drive to make the most of all the advantages of the drive system. Innovative technologies such as the Schindelhauer belt port and the slider-belt-tensioning-system are seamlessly integrated to consistently maintain the purist design.

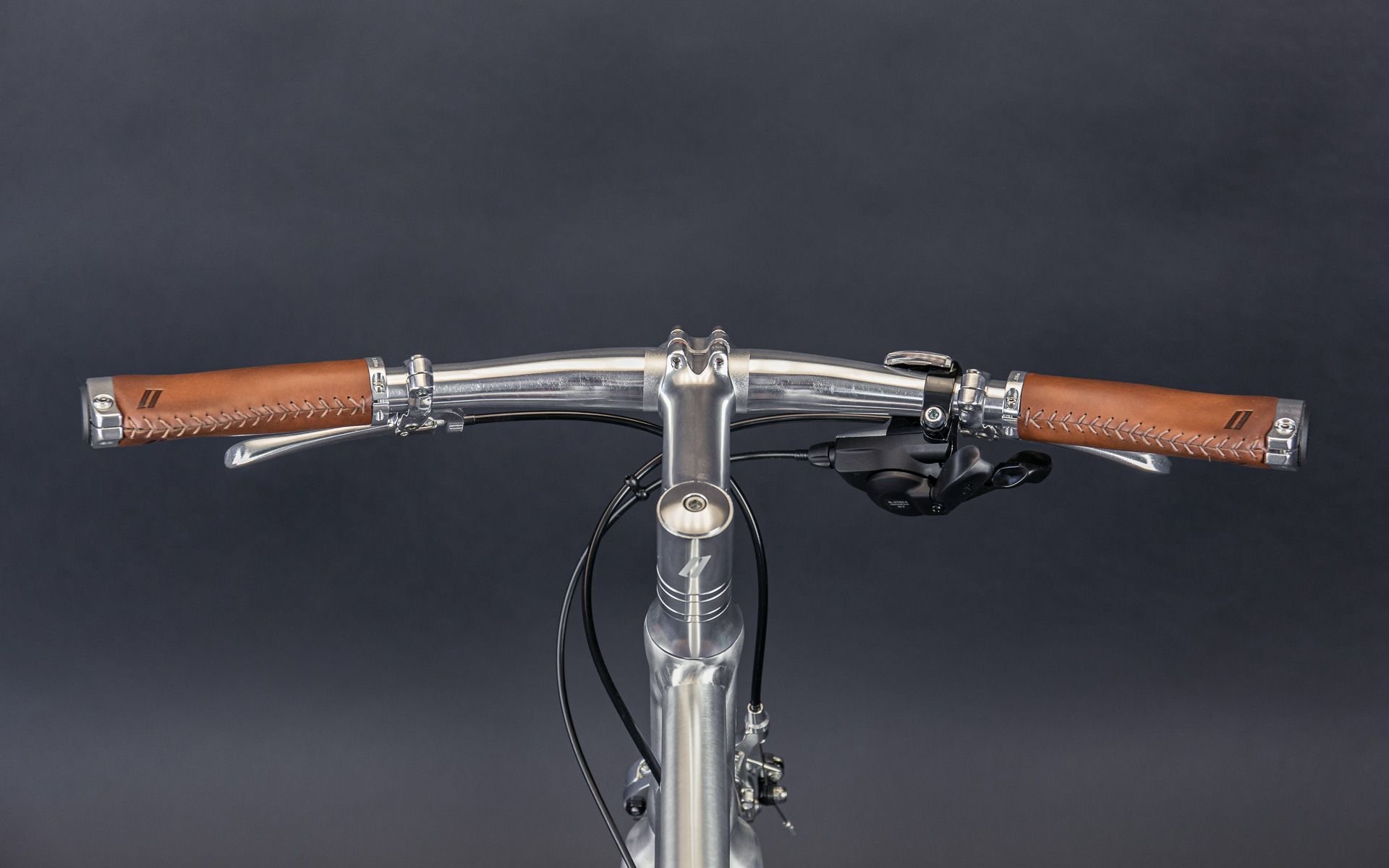

Sporty-classic cockpit
High-quality leather features and silver-polished components reveal the clear character traits: Ludwig is a classic sportsman. The clean cockpit seamlessly integrates all components and offers agile handling.
KEY FEATURES
SADDLE: Brooks - B17
BRAKES: Tektro - R539, Tektro - FL750
FRAME: Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, points for frame mounted front rack, smooth welded
GEAR SHIFT: Shimano - Alfine 8-speed / 11-speed internal gear hub
CARGO: Front and rear pannier rack mounting possible
POWER TRANSMISSION: Gates Carbon Drive - CDX, front 55T/50T, rear 22T/24T, belt 115T/113T
WHEELS: Schindelhauer - high flange front hub, Shimano - Alfine 8-/11-speed internal gear hub, Alexrims - CX30 rims, Sapim - Race spokes, radial and 2-cross laced
TYRES: Continental – Contact Urban with reflective stripes 28-622
| Frame Size | Body Height (cm) | Inseam Length (cm) |
|---|---|---|
| XS (50) | 151-160 | 73-77 |
| S (53) | 161-170 | 78-82 |
| M (56) | 171-179 | 83-86 |
| L (59) | 180-188 | 87-91 |
| XL (62) | 189-198 | 92-95 |
| Frame Size | 50 (XS) | 53 (S) | 56 (M) | 59 (L) | 62 (XL) |
|---|---|---|---|---|---|
| A Size C-T (mm) | 500 | 530 | 560 | 590 | 620 |
| B Top Tube Horiz. (mm) | 540 | 550 | 560 | 580 | 610 |
| C Head Tube (mm) | 135 | 150 | 165 | 180 | 200 |
| D Chain Stay (mm) | 416 | 416 | 416 | 416 | 416 |
| E Head Tube Angle (°) | 72.5 | 72.5 | 72.5 | 72.5 | 72.5 |
| F Seat Tube Angle (°) | 74 | 73.5 | 73 | 73 | 72.5 |
| G Wheelbase (mm) | 1006 | 1012 | 1017 | 1038 | 1063 |
| H Standover Height (mm) | 780 | 801 | 822 | 842 | 865 |
| I Reach | 396 | 397 | 398 | 414 | 433 |
| J Stack | 535 | 549 | 564 | 578 | 597 |
| Headset | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 | 1 1/8 |
| Seatpost Size (mm) | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Technical Specification | Details |
|---|---|
| GRIPS | Schindelhauer - ergo leather grips |
| FORK | curved aluminium fork |
| HEADSET | Tange Seiki - integrated |
| MAX. TOTAL WEIGHT | 120 kg (bike + rider + luggage) |
| SEATPOST | Schindelhauer |
| SADDLE | Brooks - B17 |
| BRAKES | Tektro - R539, Tektro - FL750 |
| STEM | Schindelhauer |
| MUDGUARDS | mudguard mounting possible |
| HANDLEBAR | Schindelhauer - aluminium moon bar |
| LIGHTING | optional |
| FRAME | Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider belt tensioning system and Schindelhauer - belt port, integrated seat post clamp, internal cable routing, smooth welded |
| GEAR SHIFT | Shimano - Alfine 8-speed / 11-speed internal gear hub |
| CRANK SET | Shimano - Alfine Hollowtech II |
| PANNIER RACK | front- and rear pannier rack mounting possible |
| BOTTOM BRACKET | BSA, Shimano - Alfine Hollowtech II |
| ADDITIONAL FEATURES | side stand mounting possible installing a bicycle trailer onto the rear axle is possible but will require a hub hitch adapter. Please consult the trailer manufacturer or dealer for further information |
| WHEELS | Schindelhauer - high flange front hub, Shimano - Alfine 8-/11-speed internal gear hub, Alexrims - CX30 rims, Sapim - Race spokes, radial and 2-cross laced |
| WEIGHT | 10.3 kg / 10.2 kg |
| PEDALS | Schindelhauer - Urban Pedal, aluminium, CNC machined |
| TYRES | Continental – Contact Urban with reflective stripes 28-622 |
| POWER TRANSMISSION | Gates Carbon Drive - CDX, front 55T/50T, rear 22T/24T, belt 115T/113T |
